Proset2500mcs气动拉钉枪 铆钉枪

上海科梅恩公司是1家在气动铆接行业有10几年经验公司。

美国POP品牌工具官方公司

美国HELICOIL品牌护套官方公司

美国HUCK品牌工具经销商

美国Stanley卷钉工具经销商

英国TUCKER品牌工具经销商

美国Gripnail品牌代理商

proset2500MCS

本产品质量小，工作速度快，采用噪音消除技术，不使用任何工具可快速分离前后不见，使用安全，并可以保证工作区域的卫生干净,耐久性强。

适用于不易焊接设备及薄板、薄管等产品之上，并在一定范围内代替了传统焊接的加工方式。产品目前正广泛地应用于家具、家电、空调、健身器材、自行车、电气设备、通讯设备、汽车制造、航天设备、造船、航空等多种生产制造领域。

2500技术参数

重量：1.32kg

长度：315mm

高度：259mm

最大工具拉伸力：7.4kN(0.5Mpa),9.0kN(0.6Mpa)

每次循环耗气：2.15L带MSC收缩的2.15L+60L/min

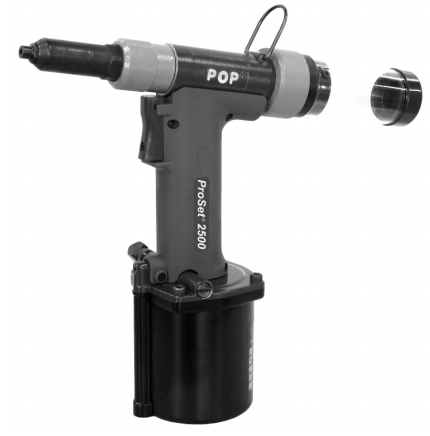

ProSet2500 Series

A lightweight tool with heavyweight force. The lightweight ProSet 2500 Rivet Tool is the heavyweight of the ProSet family. The 2500 delivers 4160 lbs. of pulling force, the highest in its class, but weighs in at just over 4 lbs. Designed specifically to set a wide range of blind rivets, including 3/16" (4.8 mm) structural high-strength and stainless steel.

• Ergonomic
  • Strong, lightweight polymer construction
  • Comfortable two-finger low-activation force trigger
  • Directional air exhaust (MCS model)
  • On/off, left or right swivel air fitting
• Performance/Economy
  • High force-to-weight ratio
  • Quick-disconnect nose housing
  • Quick-disconnect jaw case
  • Quick-disconnect Mandrel Collection System
  • Spring return for fast, reliable setting cycles
• Adaptability
  • Extended 8" (200mm) long front end for extra reach
  • POP Rivet Presenter (RP) compatibility
  • POP Remote Mandrel Collection System (MCS5000) compatible
  • POP Specialty Heads (corner head/offset head) compatible
• Safety
  • Air-isolation switch during MCS removal

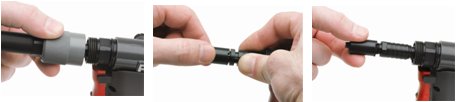

Quick-Disconnect Nose Housing & Jaw Guide

The ProSet 2500 requires no tools for routine maintenance and cleaning. Front end components can be serviced in minutes right on the production line, eliminating costly downtime.

Quick-Disconnect Mandrel Collection System

Spent mandrels are instantly collected, and with the quick-disconnect system they can be disposed of in no time, maintaining a safe and clean work environment. Quick access to the vacuum filter makes this tool serviceable in minutes. Undesirable air exhaust can be directed away from the operator
